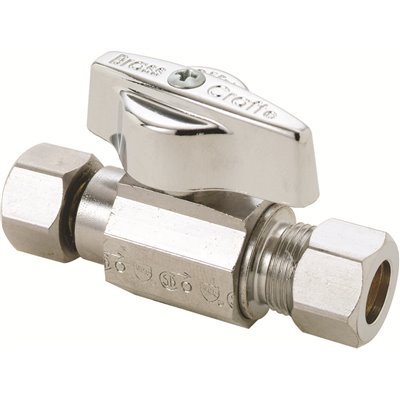

VALVE - 1/4 TURN STRAIGHT 3/8"
1014695

VALVE - 1/4 TURN STRAIGHT 3/8"

  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • 3/8 in. Nom Female Comp Inlet x 3/8 in. OD Comp Outlet
  • Compatible with copper pipe
  • For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115° F
  • Machined body provides strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Plated stem provides corrosion resistance and prevents o-ring damage. Metal handle is designed for durability, corrosion resistance & a sleek appearance
  • 100% leak tested to ensure reliable, leak-free performance
  • For indoor use
  • Temperature rating: 40° to 180°F
  • Pressure rating: 125 psi maximum
  • IAPMO listed to ASME A112.18.1 / CSA B125.1

Please Login to see your pricing for this product.

Product Details

3/8In. OD Female Compression Inlet x 3/8 In. OD Compression Outlet 1/4-Turn Straight Ball Valve controls water flow to household plumbing fixtures. The straight valve is most often used where the water pipe enters the room from the floor. With a quarter turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

Additional Information

Part Number: 1014695
