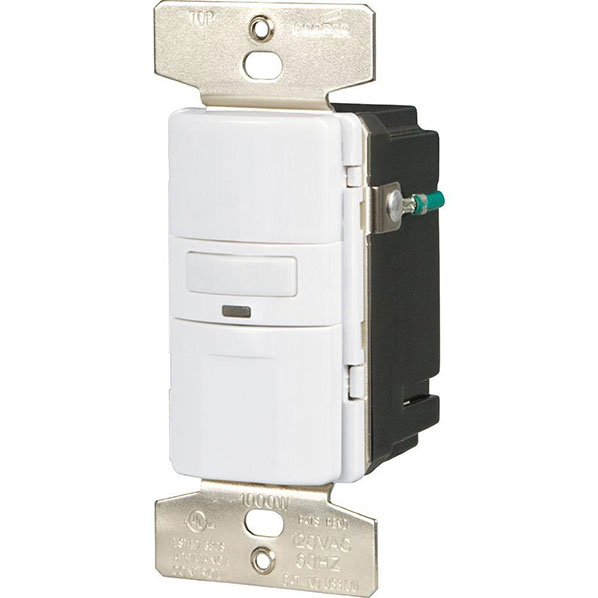

SWITCH - OCCUPANCY SENSOR WHITE

Eaton's Occupancy/Vacancy Sensor Switches use advanced PIR technology to sense the movement of heat-emitting bodies. Occupancy Sensors provide Auto-ON/Auto-OFF or Manual-ON/Auto-OFF operation while Vacancy Sensors provide Manual-ON/Auto-OFF operation only. The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Both versions provide Single Pole (single-location) and 3-Way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED). A selectable and dimmable LED nightlight is provided. All sensors are compatible with any decorator-style or decorator screwless wallplate.

• Works with all popular load types: Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, Fluorescent, CFL and LED
• Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
• Push pad design provides minimal travel and crisp actuation
• Replaces a standard light or fan switch
• Provides 180 degree field of view and 1000 sq. ft. of major motion coverage
• Provides 3-Way operation when used with a 3-Way switch or sensor
• Selectable time delay of 5 seconds (test), 5 minutes, 15 minutes and 30 minutes for lights to remain on after room is vacated
• Occupancy Sensors time delay default set to 5 minutes; Vacancy Sensors time delay default set to 30 minutes
• Occupancy Sensor provides a selectable ambient light override preventing lights from switching ON when there is acceptable natural light
• Occupancy Sensor Version allows to toggle between Auto-ON/Auto-OFF or Manual ON/Auto-OFF mode with a simple press and hold of switch
• Occupancy Sensor provides for a bypass feature to allow the sensor to perform as a traditional switch (Manual ON/Manual OFF)
• Electrostatic discharge protection
• No leakage to load in off modeUniform color matched PIR lens to device housing
• Color change faceplate kits provide for a simple in field change
• Neutral required for installation of device
