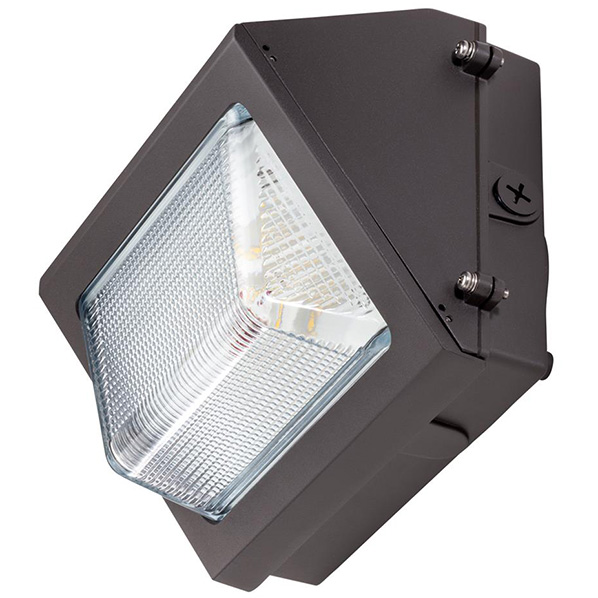

FIXTURE - 28W LED WALL PACK 50K
1013057

FIXTURE - 28W LED WALL PACK 50K

  • 28W replaces 100W HID
  • Input Voltage, Frequency Hz : 120-277V, 60Hz
  • Power Factor, THD %: >0.9, <20%
  • Dimmable: 0-10V1
  • Surge protection: 6kV
  • Emergency Backup: EM models available in 5000K
  • Photocell: Optional
  • Efficacy: Up to 144 LPW
  • CRI: 80
  • IES Distribution: Type IV
  • Functional Life (L70): 50,000 Hours
  • Location Rating : Wet
  • IP Rating: IP65
  • Ambient Operating Temperature: -22 DegreeF to 112 DegreeF

Please Login to see your pricing for this product.
You may also be interested in:
FIXTURE - 100W LED WALL PACK 50K
1013056 FIXTURE - 100W LED WALL PACK 50K
FIXTURE - 50W LED WALL PACK 50K
1013058 FIXTURE - 50W LED WALL PACK 50K
FIXTURE - 93W LED WALL PACK 50K
1013314 FIXTURE - 93W LED WALL PACK 50K

Product Details

Wall packs are the ideal solution for wide area illumination of parking areas, entry ways, loading docks, and pathways. This new generation of wall pack provides maximum illumination and compares well to traditional HID as a direct replacement. This 28W, 5000K wall pack features a corrosion resistant housing, impact resistant glass lens, universal input voltage and high efficacy LEDs
  • Cast aluminum housing with internal heatsink
  • Bronze polyester powder coat paint finish (other color options available)
  • Shatter-resistant borosilicate lens
  • Five NPT -1/2" threaded hubs for additional mounting or control options (small size models have four hubs)
  • 5 year warranty
  • 0-10V driver standard for dimming and building control
  • Battery backup models available for emergency lighting in the event of a power failure
  • Optional photocell, wireguards and shields available

Additional Information

Part Number: 1013057
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
