1014183

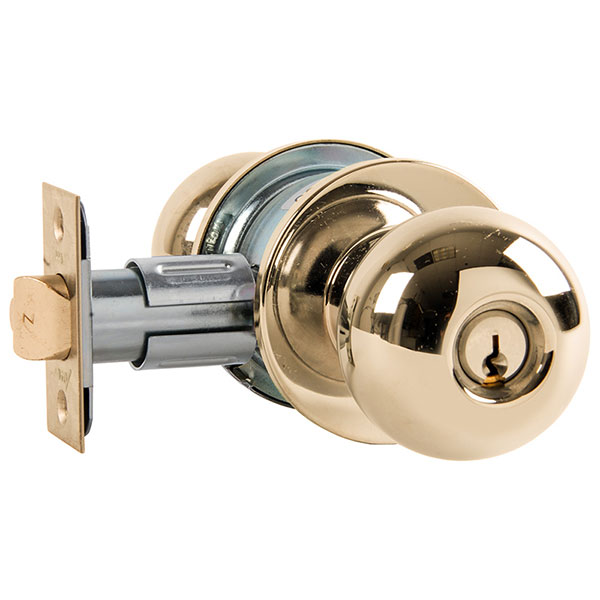

ENTRY LOCK - ARROW CYLINDRICAL
- Lock Chassis Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
Please Login to see your pricing for this product.
Product Details
Cylinder, Standard Solid brass 6 pin cylinder with Arrow A keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed.
- Backset 2-3/8" (60.32mm) standard. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
- Door Thickness 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Latch Brass with 1/2" (12.7mm) throw.
- Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in edge of door is required.
- Latch Front Brass, bronze or stainless steel. Standard faceplate for 2-3/8 (60.32.mm) backset measures 2-1/4 (57.15mm) x 1 (25.40mm) with a flat front, for 2-3/4 (69.85mm) backset standard faceplate measures 2-1/4 (57.15mm) x 1-1/8 (28.57mm) with beveled front 1/8 (3.17mm) in 2 (50.8mm).
- Strike Brass, bronze or stainless steel. Standard T strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). All strikes have a 1-1/4" (31.75mm) lip to center dimension.
- Handing Reversible.
Additional Information
| Part Number: | 1014183 |
|---|---|
| MFG Part Number: | |
| Weight: | 0.00 LB |
| Height: | 0.00 |
| Depth: | 0.00 |
| Width: | 0.00 |
| Size: | |
| Product PDF: | |
| Extra Details: |
